RING PROFILES
The W&D range is available in many different profiles, from “economy wedders” for the conservative budget, through to luxury weights and thicknesses.
The different profiles are made up of ‘Half-Round’, ‘Quarter Round’, ‘flat’ and a selection of alternative profiles are also available.

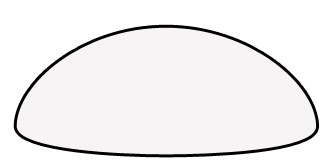

| CWD 1 |  |
½ round, deluxe weight | 1.33mm | 2 — 11mm |

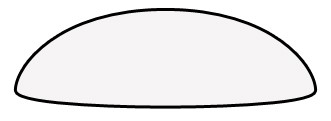

| CWD 2 |  |
½ round, medium weight | 1.1mm | 2 — 11mm |

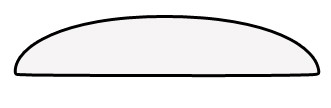

| WD 3 |  |
½ round, lightweight | 0.9mm | 1 — 12mm |
| WD 15 |  |
½ round, economy weight | 0.8mm | 1 — 10mm |

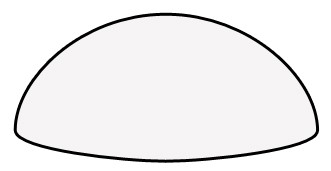

| CWD 21 |  |
½ round, extra deluxe weight (high dome) | 1.8mm | 2 — 11mm |

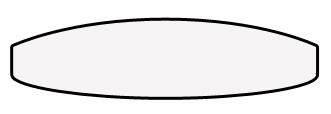

| CWD 4 |  |
¼ round, thick edge, deluxe weight | 1.2mm | 2 — 11mm |

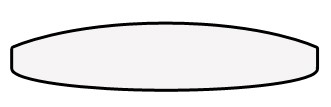

| CWD 11 |  |
¼ round, thick edge, medium weight | 1.15mm | 2 — 11mm |

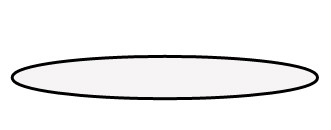

| CWD 22 |  |
ellipse shape, deluxe weight | 1.6mm | 2 — 11mm |
| CWD 26 |  |
ellipse shape, thick edge deluxe weight | 1.6mm | 2 — 11mm |

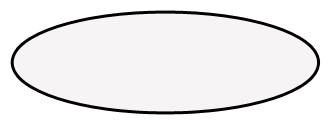

| CWD 25 |  |
ellipse shape, extra deluxe weight | 1.95mm | 2 — 11mm |

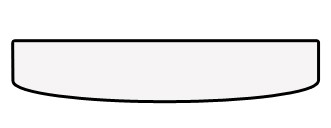

| CWD 27 |  |
flat, extra deluxe weight | 1.75mm | 2.5 — 8mm |

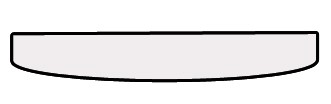

| CWD 5 |  |
flat, deluxe weight | 1.2mm | 1 — 15mm |

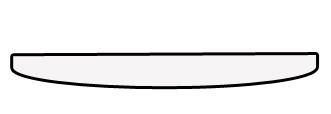

| CWD 6 |  |
flat, medium weight | 1mm | 1 — 15mm |

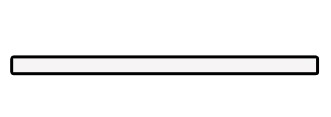

| WD 7 |  |
flat, light weight | 0.75mm | 1 — 15mm |
| WD 14 |  |
flat, economy weight | 0.7mm | 1— 15mm |

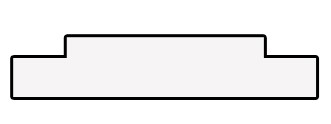

| WD 8 |  |
Raised centre strip, one metal | 1.1mm | 3 — 9mm |

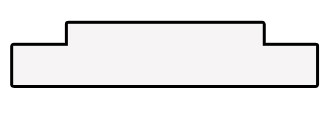

| WD 10 |  |
raised centre strip, bi metal | 0.7mm | 3 — 9mm |
| CWD 16 |  |
round | 2.1mm | 2.2 — 3mm |
| WD 17 |  |
½ round bands, soldered together | 1.1mm | |

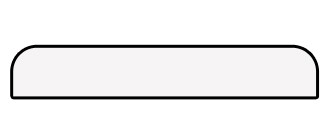

| DN |  |
This is a soft edge to go on the flat wedders above | ||

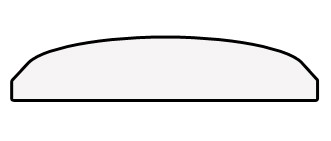

| DL |  |
This is the bevelled edge to go on the WD 4 and WD 11 profiles | ||
| DL |  |
This is the bevelled edge to go on the flat wedders above | ||
